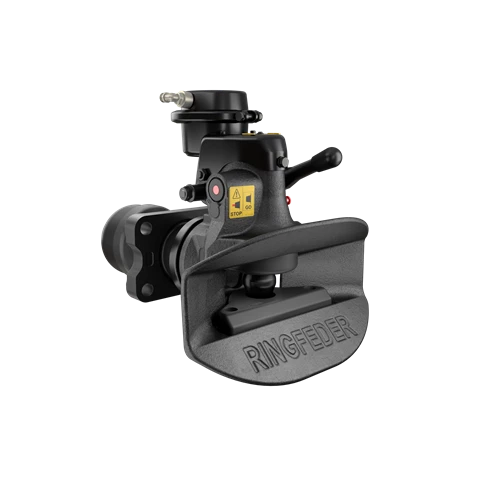

Ringfeder® trailer coupling 303 BR AM/RL

The best-selling reliable workhorse for really heavy transportation and the tough road conditions in Brazil. Only available in Brazil.

The D-value of 320 kN makes this the perfect choice for really heavy transportation. This strong and reliable coupling is designed and built for trouble-free extended heavy-duty use. The air driven automatic opening mechanism is an innovative safety feature that saves time and trouble for the driver. The sturdy construction requires very little maintenance and it will last for many years of intense use, giving you excellent value for money.

15990212
Trailer coupling RINGFEDER® type 303 BR AM/RL

Why should I choose this?

This Ringfeder coupling is an ECE certified high-quality product that requires minimal service and maintenance. It is easy to operate, and you will have the most reliable performance. Full support and global spare part availability, together with long, trouble-free service life, provides the excellent Ringfeder value to owners and users.

  • A high-quality product
  • Easy to operate
  • The most reliable performance
  • Full support and spare part availability

Technical data

15990212

Specifications

Hand lever operation Upwards
Hole pattern coupling 160 x 100
Weight 49.5 kg
EU coupling class C50-X
Operation Semi Assisted
Drawbar eye diameter 50 mm
Surface Treatment E-coat
Color Black
Type approval No. E11 55R-01 10486

Performance values

  Alt. 1 Alt. 2 Alt. 3
D Value (kN) 320 320 320
Dc Value (kN) 135 135 170
S Value (kg) 1000 2000 1000
V Value (kN) 75 63 60
}
