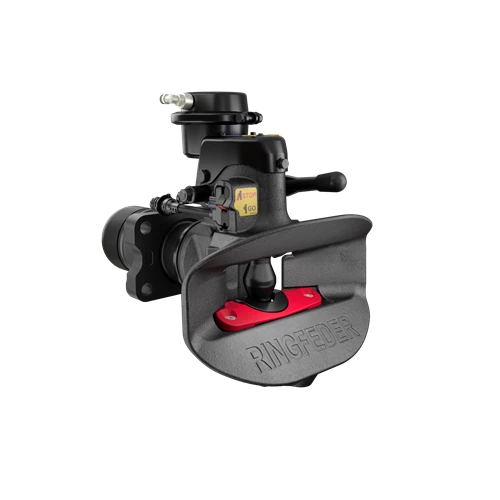

Ringfeder® trailer coupling RF50 AM/RL CD

The new generation of the best-selling air-assisted all-round workhorse for most applications within medium and heavy transportation - equipped with an analogue coupling sensor (CSM DIN 72585)

A convenient quick operation air opened coupling for hinged or rigid drawbars. It is the ideal solution for underslung positioning. The self-closing and automatically secured coupling provide high safety and long-term reliable performance. The pneumatic opening makes it ergonomic, time-saving and improved productivity for the driver.

A robust and easily maintained safety device adds further to safety.
The coupling is equipped with a reinforced guiding funnel which is easily replaceable.

This trailer coupling is equipped with an analogue coupling sensor (CSM DIN 72585) to connect to the existing electrical infrastructure of the previous generation. For example, to replace an already installed trailer coupling of the previous generation (e.g., type 5050 AM/RL), if the already installed ECU (previous model) is still to be used.

Or to use to connect to a Mercedes-Benz truck with a pre-installed locking indication (ex-factory via Code Q9A) via the Ringfeder adapter for code Q9A.

For other cases like first installation the new electrical infrastructure with the digital CSM is recommended.

Choose variant

15990859
RINGFEDER® trailer coupling RF50 AM/RL CD Variant changed

Why should I choose this?

This Ringfeder coupling is an ECE certified high-quality product that requires minimal service and maintenance. It is easy to operate, and you will have the most reliable performance. Full support and global spare part availability, together with long, trouble-free service life, provides the excellent Ringfeder value to owners and users.

  • A high-quality product
  • Easy to operate
  • The most reliable performance
  • Full support and spare part availability

Ringfeder Red Line (AM/RL)

Fast and ergonomic
The Ringfeder original air mechanism / Red Line adds a convenient pneumatical opening, with 50% higher closing power compared to a standard coupling. Air assisted operation makes coupling and uncoupling significantly faster and more ergonomic for the driver.

Works with your current installation
Connect your Ringfeder AM/RL coupling to the existing compressed air supply of your truck, and operate with your control unit of choice. No installation of a separate compressed-air line needed. Compatible with Duomatic, Palm, C-coupling and Valve box.

Technical data

Selected variant: 15990859

Specifications

Hole pattern coupling 160 x 100
Surface Treatment E-coat
Weight 47.6 kg
EU coupling class C50-X
Operation Semi Assisted
Drawbar eye diameter 50 mm
Type approval No. E11 55R-016289

Performance values

  Alt. 1 Alt. 2 Alt. 3 Alt. 4
D Value (kN) 200 200 200 200
Dc Value (kN) 135 135 135 170
S Value (kg) 1000 2000 2500 1000
V Value (kN) 75 63 50 60

Configure product

Required options

Jacknifing warning and Locking indicator in cab

arrow-down
Jackknifing warning.png

With this warning system, the driver is alerted and can avoid jacknifing before it is too late.

This safety feature saves time and hassle when reversing, and you avoid equipment damage and costly repairs.

Locking indicator - Visable from a distance

arrow-down

Locking mode is shown by a built-in LED light indicator, and the signal (red/green) is clearly visible also in the dark. By connecting a passive fibre optic cable to the indicator, the signal be displayed on any location, e.g. on the side of the vehicle.

Locking indicator in cab

arrow-down

By the RINGFEDER indicator panel, locking mode (red/green) is conveniently displayed in the cab. Alternatively, the locking indication can be shown in the vehicle's own display, if supported by the vehicle manufacturer.

Jackknifing warning.png
}
