SL series

Made from lightweight U profile

With towing eye Ø 40 mm (DIN 74054-40 A) as standard. All drawbars are also available with towing eye Ø 50 mm (DIN 74053-50 A). In all standard versions, the bearing eyes have plastic bushes. Other dimensions and towing eyes are available on request

Choose variant

Variant changed

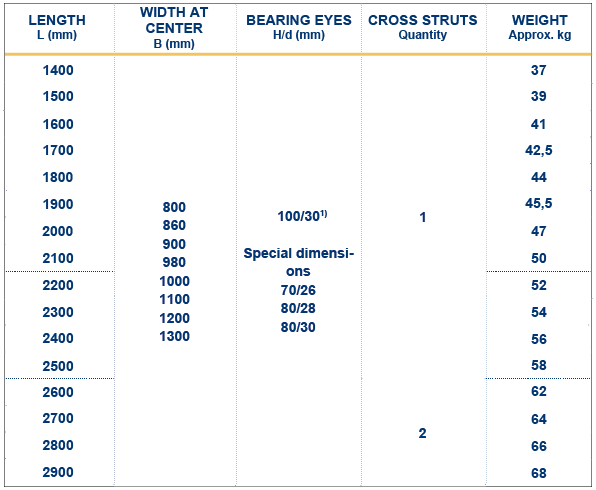

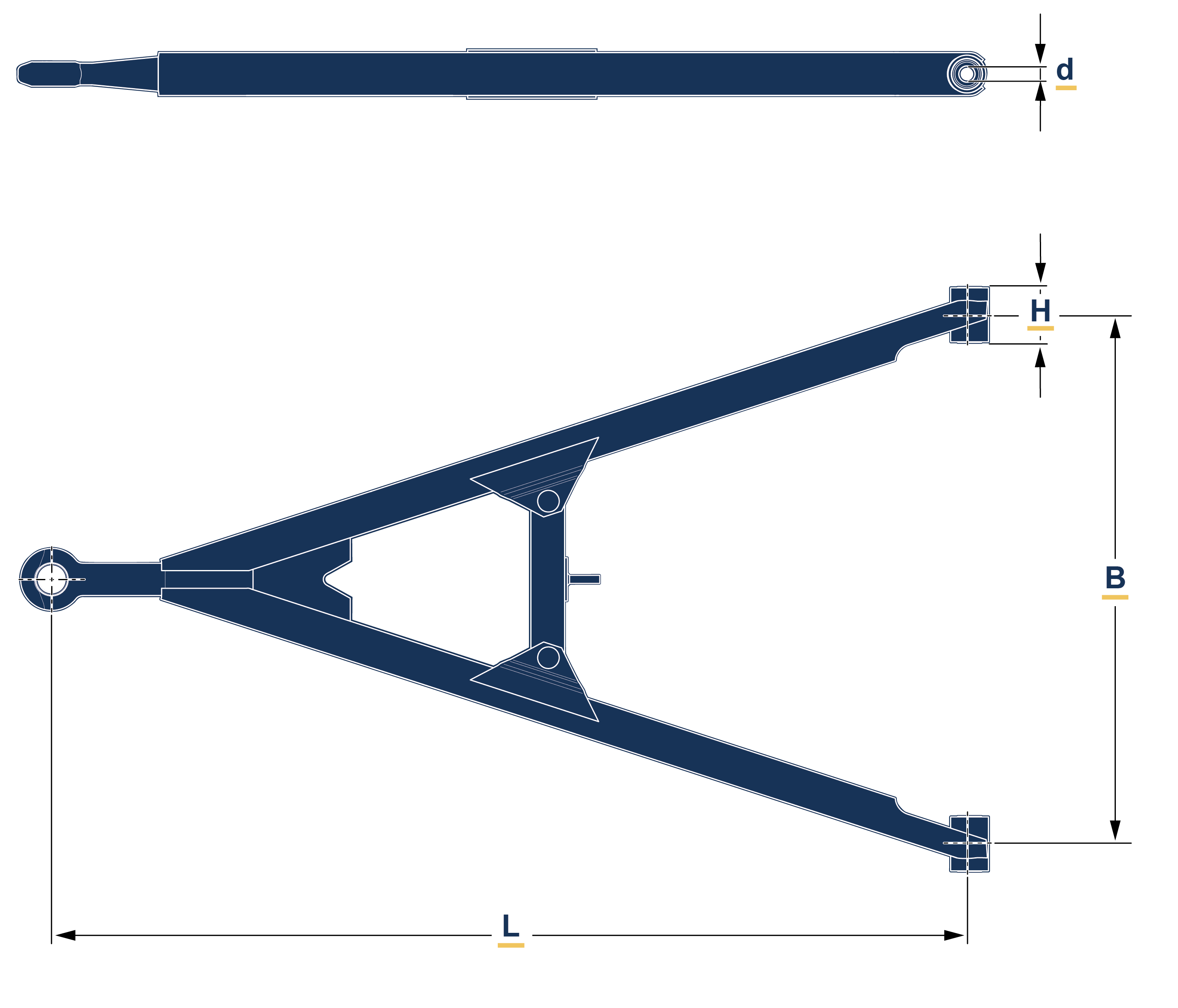

SL 27 - dimensions-01

                                                       SINGLE AXLE

Max axle load (t)

DZ min. (mm)

         6

                                                        TWO AXLES

Max axle load (t)

RA max. (mm)

DZ min. (mm)

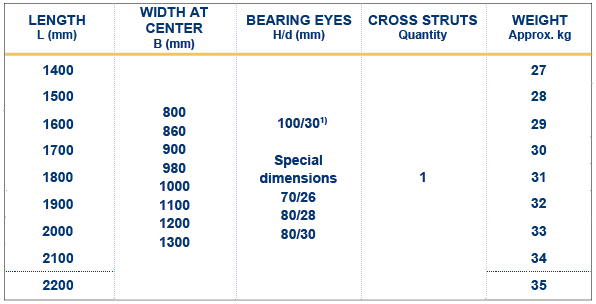

SL 27 - dimensions-01

                                                       SINGLE AXLE

Max axle load (t)

DZ min. (mm)

         12

                                                        TWO AXLES

Max axle load (t)

RA max. (mm)

DZ min. (mm)


}
