PZMS series

Fixed centre tube and angled towing eye

With towing eye Ø 40 mm (DIN 74054-40 A) as standard. All drawbars are also available with towing eye Ø 50 mm (DIN 74053-50 A). In all standard versions, the bearing eyes have plastic bushes. Other dimensions and towing eyes are available on request.

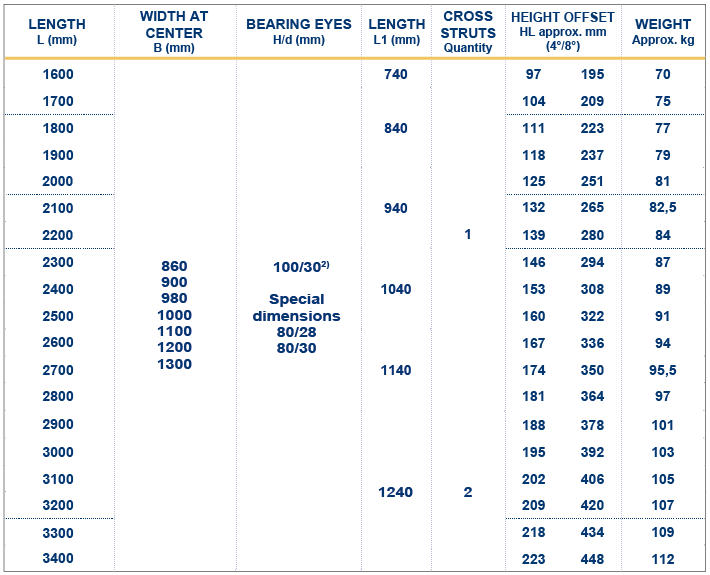

Drawbar PZMS 26
PZMS 26 - dimensions_Ny-01

                                                       SINGLE AXLE

Max axle load (t)

DZ min. (mm)

         10

                                                        TWO AXLES

Max axle load (t)

RA max. (mm)

DZ min. (mm)


}
