ZGS series

Angled towing eye

With towing eye Ø 40 mm (DIN 74054-40 A) as standard. All drawbars are also available with towing eye Ø 50 mm (DIN 74053-50 A). In all standard versions, the bearing eyes have plastic
bushes. Other dimensions and towing eyes are available on request.

Choose variant

Variant changed

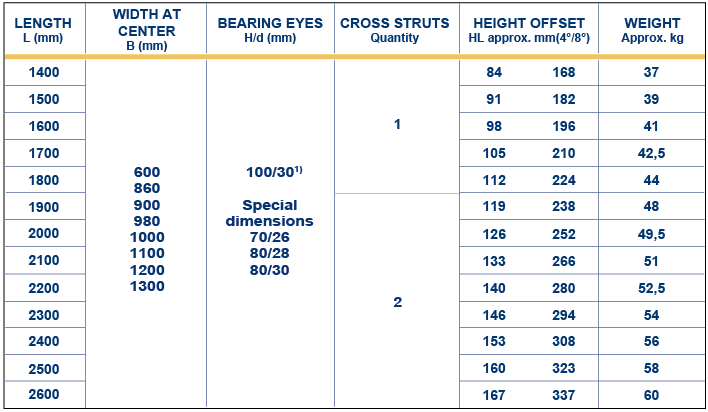

ZGS - dimensions_NY-01

                                                       SINGLE AXLE

Max axle load (t)

DZ min. (mm)

         12

                                                        TWO AXLES

Max axle load (t)

RA max. (mm)

DZ min. (mm)

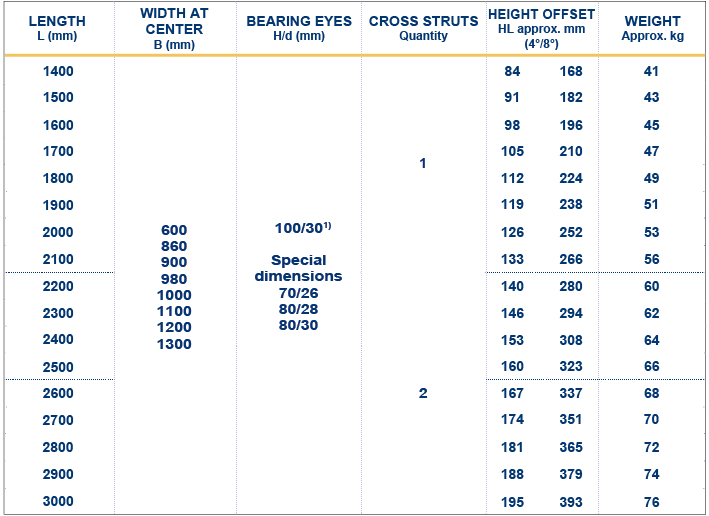

ZGS - dimensions_NY-01

                                                       SINGLE AXLE

Max axle load (t)

DZ min. (mm)

         12        600

                                                        TWO AXLES

Max axle load (t)

RA max. (mm)

DZ min. (mm)

            16        1360       1200

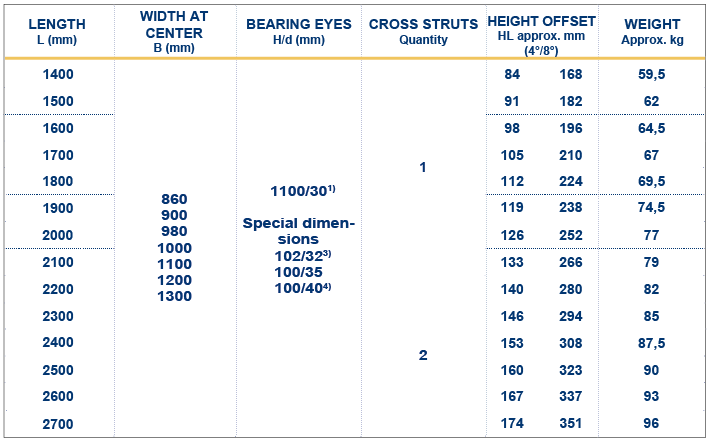

ZGS - dimensions_NY-01

                                                       SINGLE AXLE

Max axle load (t)

DZ min. (mm)



                                                        TWO AXLES

Max axle load (t)

RA max. (mm)

DZ min. (mm)

            20-24
}
